CYLINDER LINER

Introduction:

 A cylinder liner is a cylindrical part which is to be fitted into an engine block forming a cylinder. It is one of the most important functional parts to make up the interior of an engine. This is called Cylinder liner in Japan, but some countries (or companies) call this Cylinder sleeve.

Functions:


Figure: Cross-section of a cylinder in an internal combustion engine

These are main functions of Cylinder Liners.


  1. Formation of sliding surface:  The cylinder liner, serving as the inner wall of a cylinder, forms a sliding surface for the piston rings while retaining the lubricant within. The most important function of cylinder liners is the excellent characteristic as sliding surface and these four necessary points.
  1. High anti-galling properties
  2. Less wear on the cylinder liner itself
  3. Less wear on the partner piston ring
  4. Less consumption of lubricant



  1. Heat transfer: The cylinder liner receives combustion heat through the piston and piston rings and transmits the heat to the coolant.

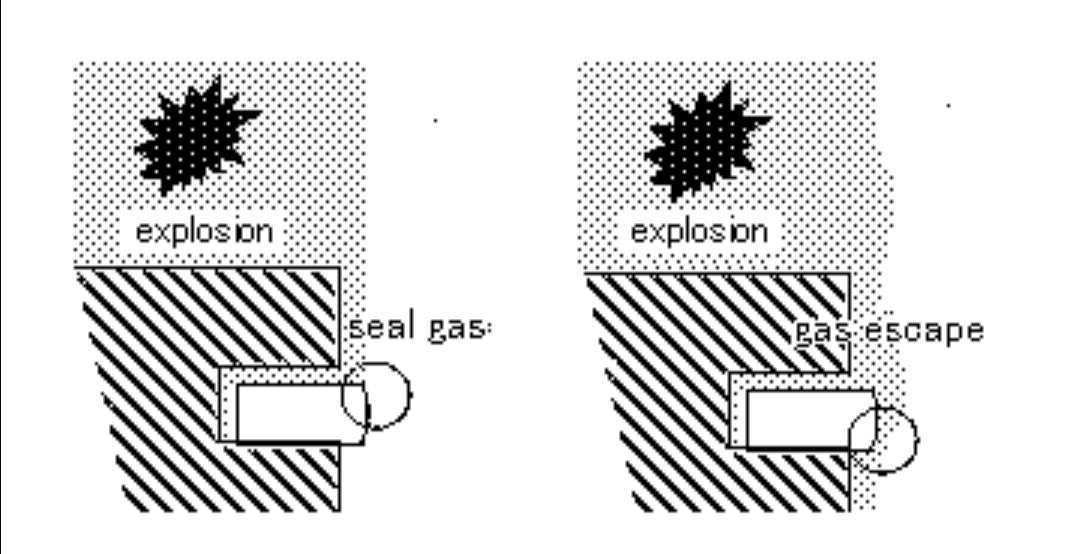

  1. Compression gas sealing: The cylinder liner prevents the compressed gas and combustion gas from escaping outside. It is necessary that a cylinder liner which is hard to transform by high pressure and high temperature in the cylinder.
